Alcove
66" x 32" x 20"

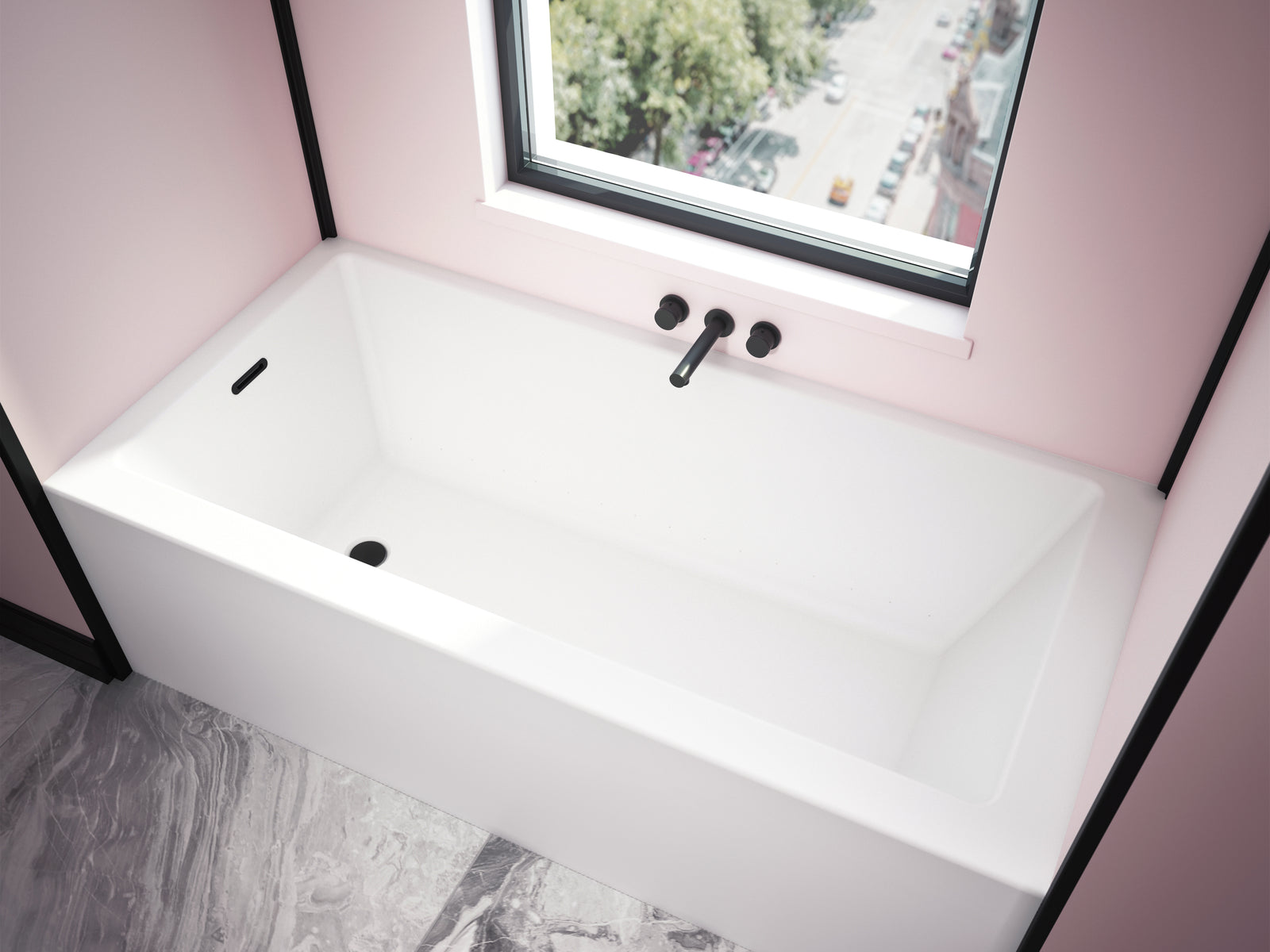

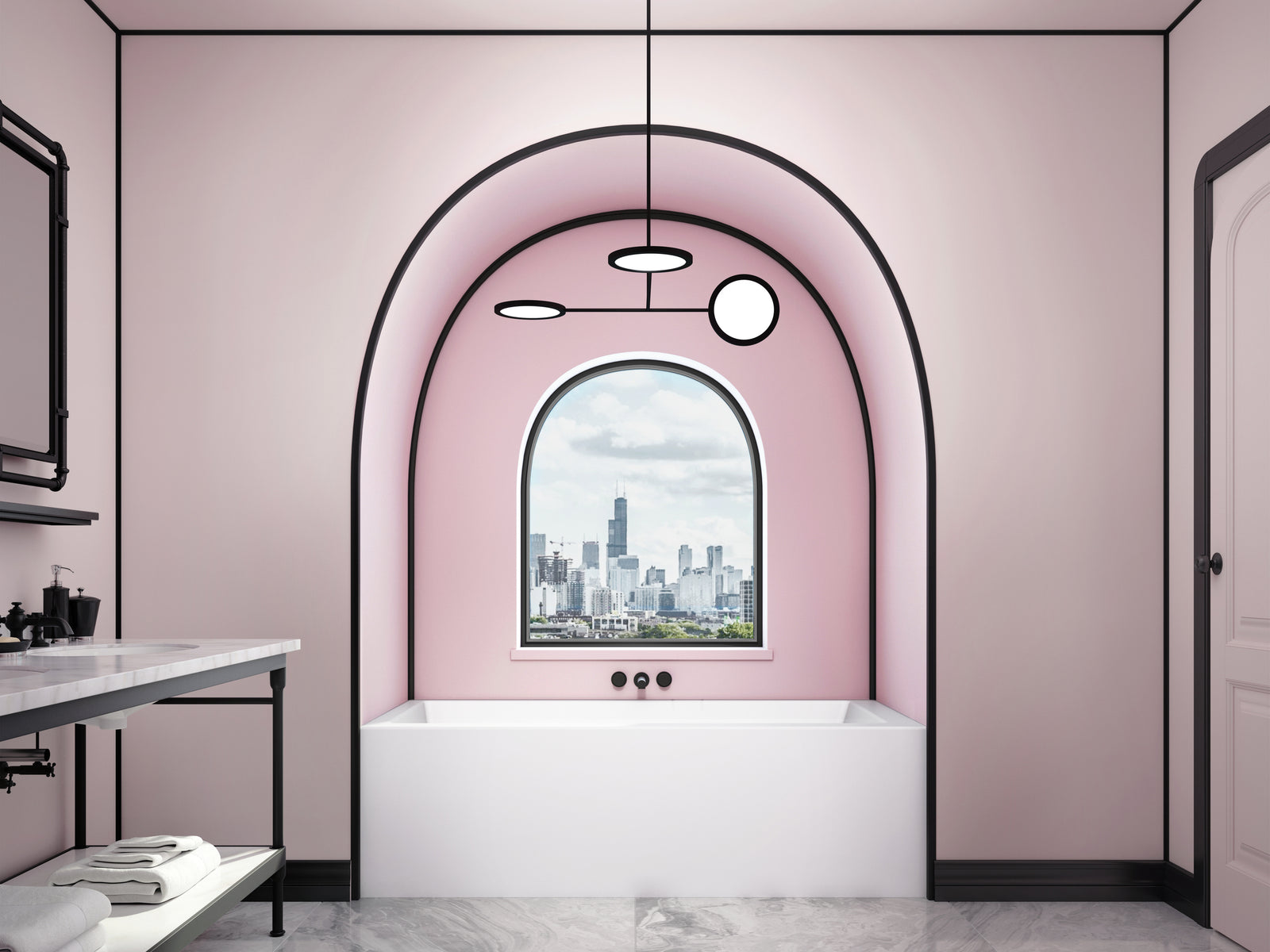

The Bain de Ville is a modern alcove bath with a sleek integrated skirt and optional therapeutic enhancements. Compact yet comfortable, it maximizes bathing within a reduced footprint for everyday wellness in urban living spaces.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Product sheet & template
Technical specs
Download documentInstallation manual
Download documentOther files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

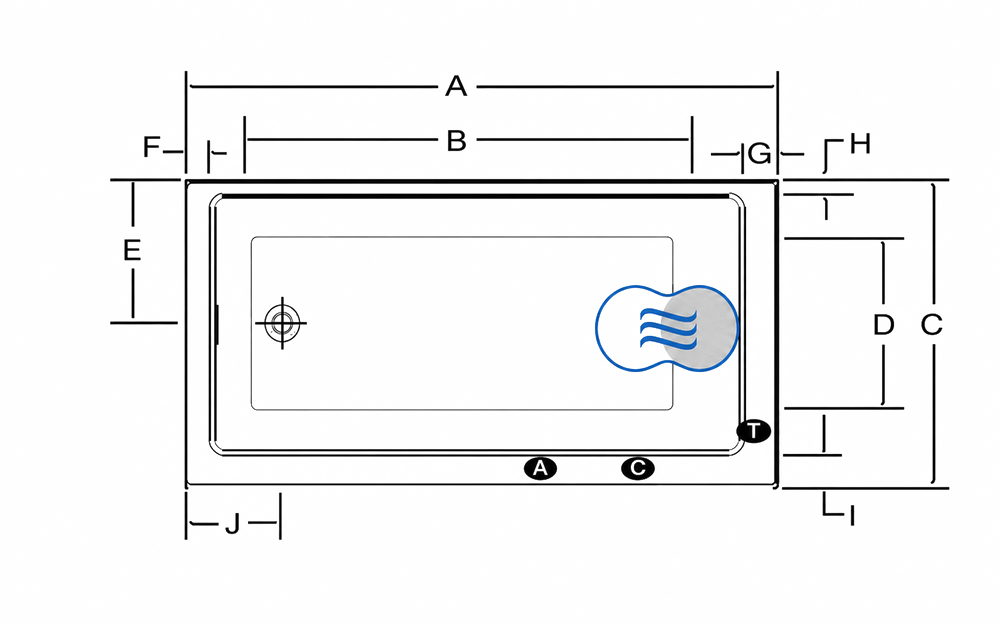

Download document| Letter | Description | Measure |
|---|---|---|
| A | Total length | 66" |
| B | Bathing well length | 50 5/8" |
| C | Total width | 32" |
| D | Bathing well width | 21 3/8" |
| E | Outer edge to center drain (right side) | 15 1/8" |
| F | Deck width (drain side) | 3 3/16" |
| G | Deck width (backrest) | 4 3/8" |
| H | Deck width (wall side) | 2" |
| I | Deck width (skirt side) | 3 7/8" |
| J | Outer edge to center drain | 10 7/8" |
| K | Outer edge to center of overflow | 2 5/16" |
| L | Tile flange height | 1" |
| M | Height from floor to bottom of deck | 20" |
| N | Slope of backrest | 21° |
| O | Maximum water level | 16" |
