Freestanding
57" x 36" x 23"

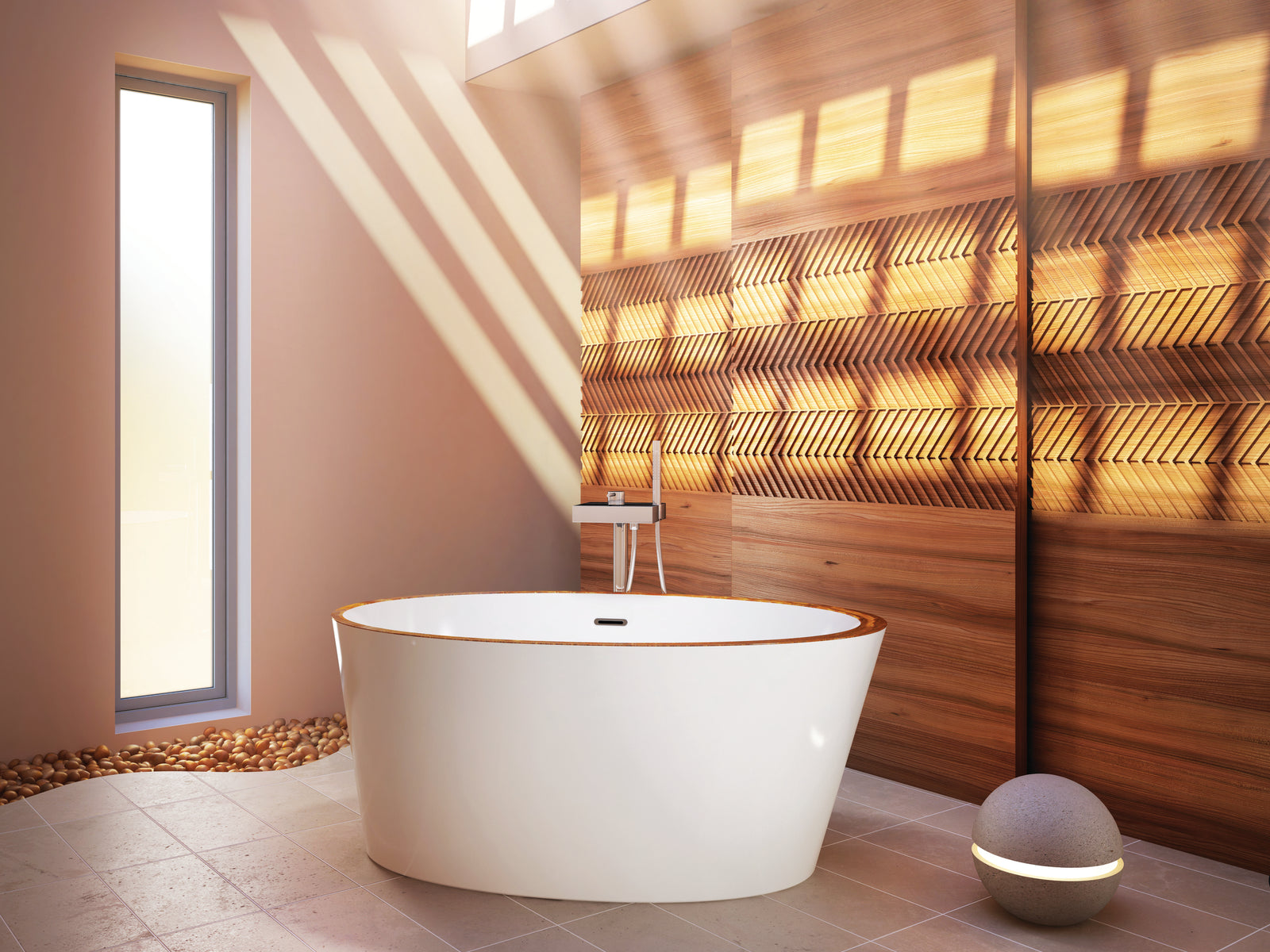

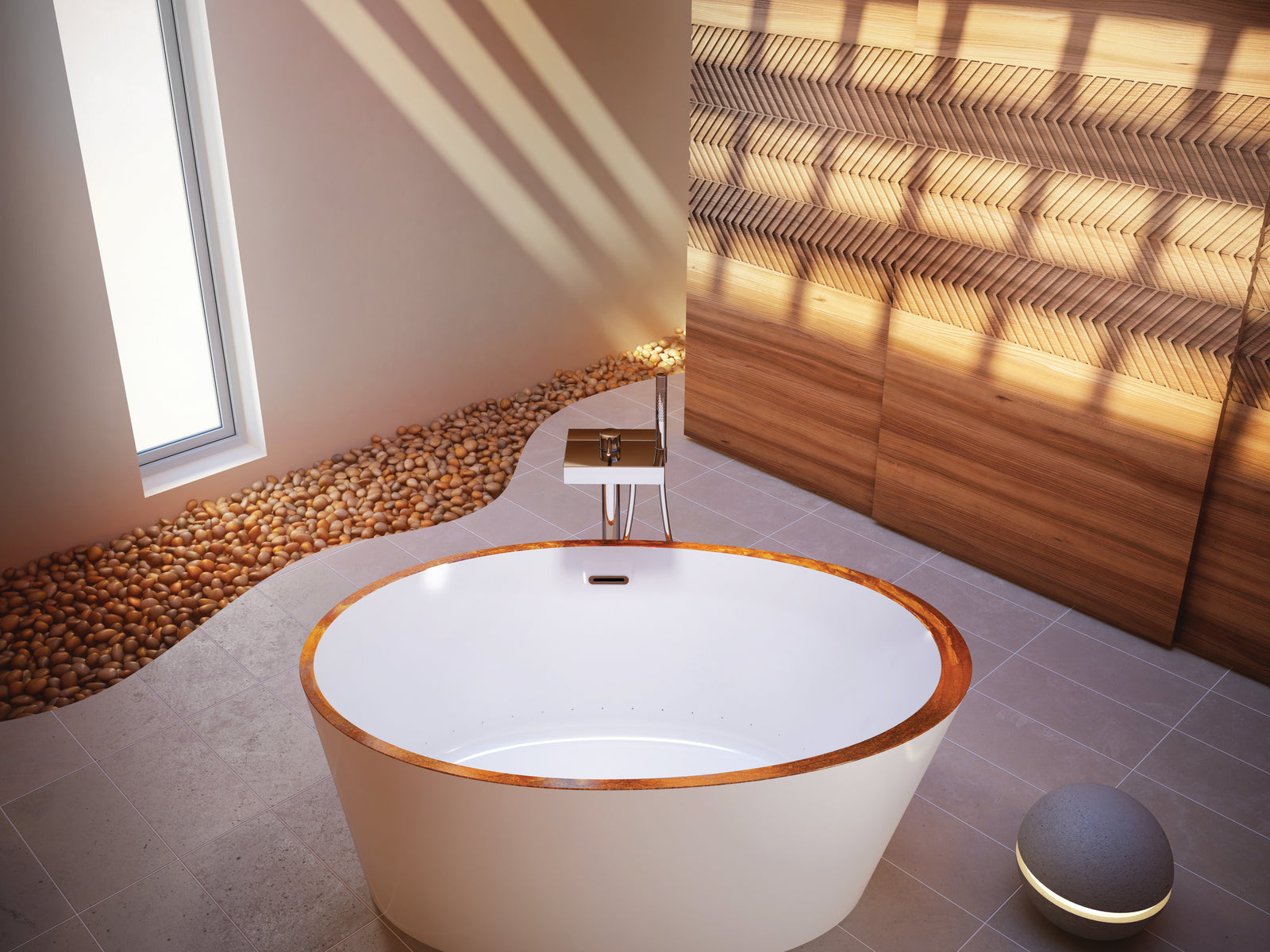

Bold yet balanced, the Charism Freestanding bath pairs minimalist geometry with an optional contrasting deck color for visual depth. Its architectural silhouette makes a confident statement while offering generous comfort for one or two bathers.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentCutting template
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

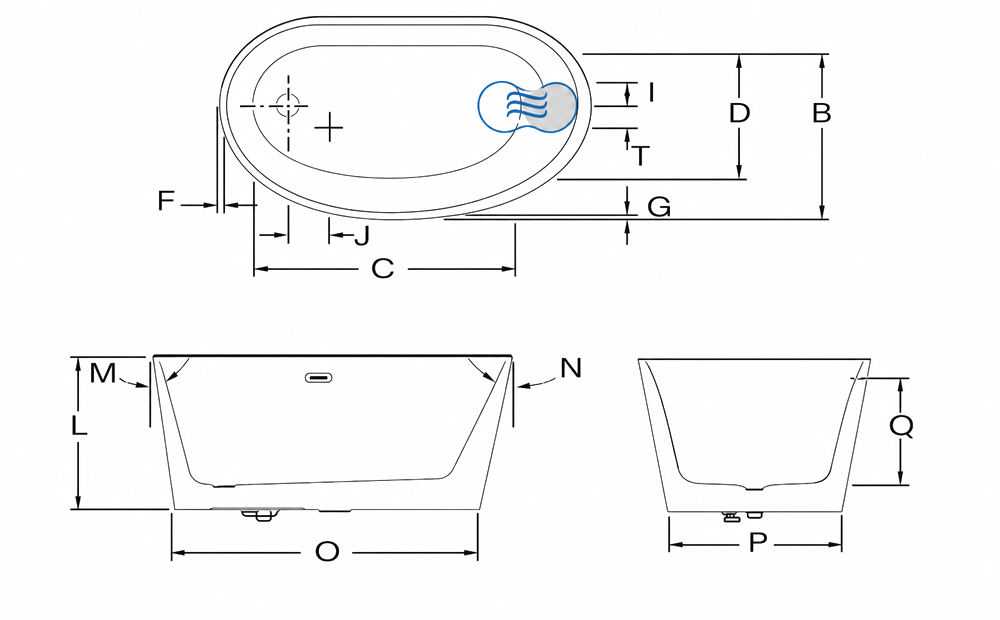

Download document| Letter | Description | Measure |
|---|---|---|
| A | Total length | 57 1/4" |
| B | Total width | 35 7/8" |
| C | Bathing well length | 41 1/2" |
| D | Bathing well width | 23 7/8" |
| E | Deck width at headrest | 2 5/8" |
| F | Deck width (drain end) | 1 1/8" |
| G | Deck width | 1 1/8" |
| H | Center bath drain to air intake | 3 1/2" |
| I | Center bath drain to drain hole | 4 1/4" |
| J | Center bath drain to air intake | 6 1/2" |
| K | Outside edge to center bath drain | 10 3/4" |
| L | Total height | 23 1/4" |
| M | Slope at drain end | 12° |
| N | Slope of backrest | 31° |
| O | Base length | 47 3/8" |
| P | Base width | 26 7/8" |
| Q | Maximum water level | 15 7/8" |
Let us help you find an authorized BainUltra retailer near you
