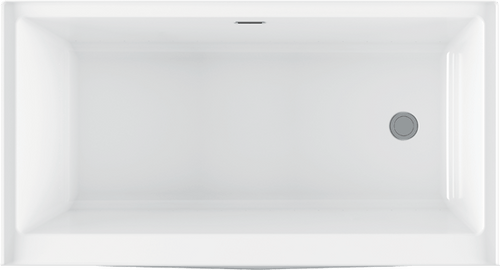

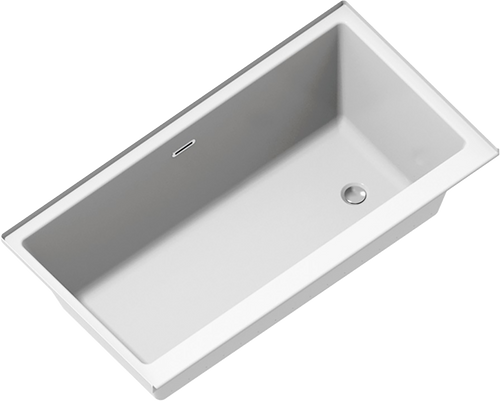

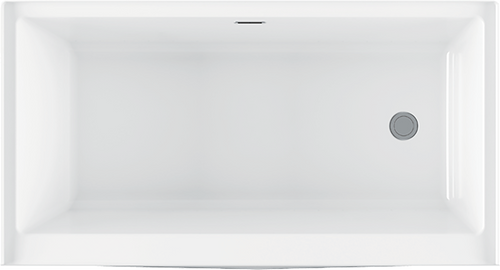

Alcove
60" x 32" x 20"

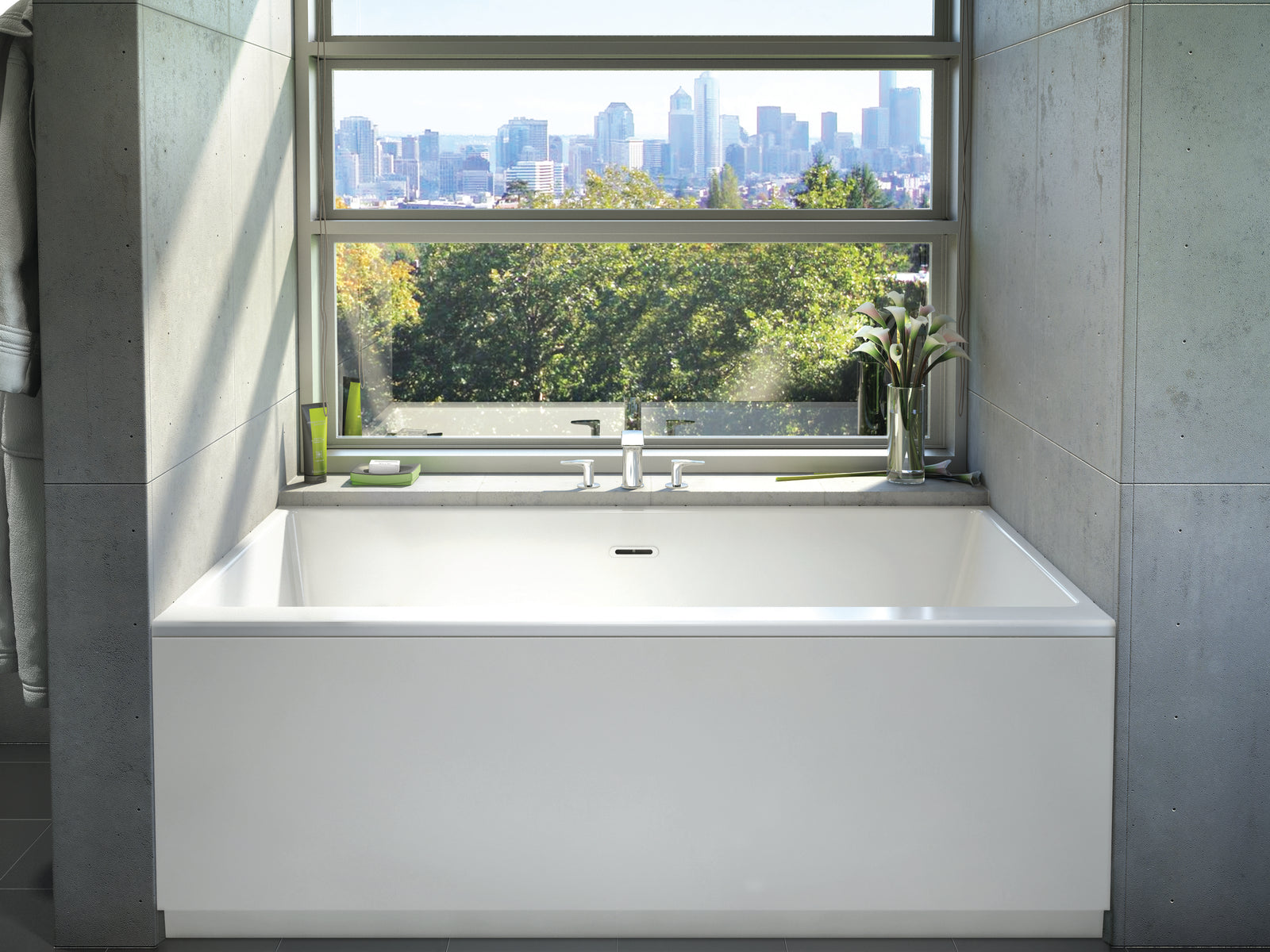

The Citti collection is designed for small bathrooms, combining compact dimensions with a surprisingly spacious interior. Its skirted front and ergonomic seating provides a comfortable soak with optional therapeutic enhancements.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Product sheet & template
Technical specs
Download documentInstallation manual
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch
Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain (Integrated drain & overflow) | 10 7/8" |
| B | Outside edge to center of drain hole (Drain & overflow 16" x 35" Front Overflow only) | 1 3/8" |
| C | Total length | 60" |
| D | Total width | 32" |
| E | Bathing well length | 49 1/4" |
| F | Bathing well width | 21 1/8" |
| G | Deck width (skirt side) | 3 3/4" |
| H | Deck width at drain end | 2 1/8" |
| I | Height from bottom of bath to top deck | 20" |
| J | Maximum water level | 14 1/2" |
| K | Slope of backrest | 17° |
| L | Height from bottom of deck to top standard deck | 1 1/2" |
| M | Height from bottom of deck to top slim deck | 1/2" |
| N | Tile flange height | 1" |
| O | Deck width overflow side | 2 1/8" |
| P | Outside edge to center drain | 15 1/8" |
