Alcove, Drop-in
72" x 42" x 21"

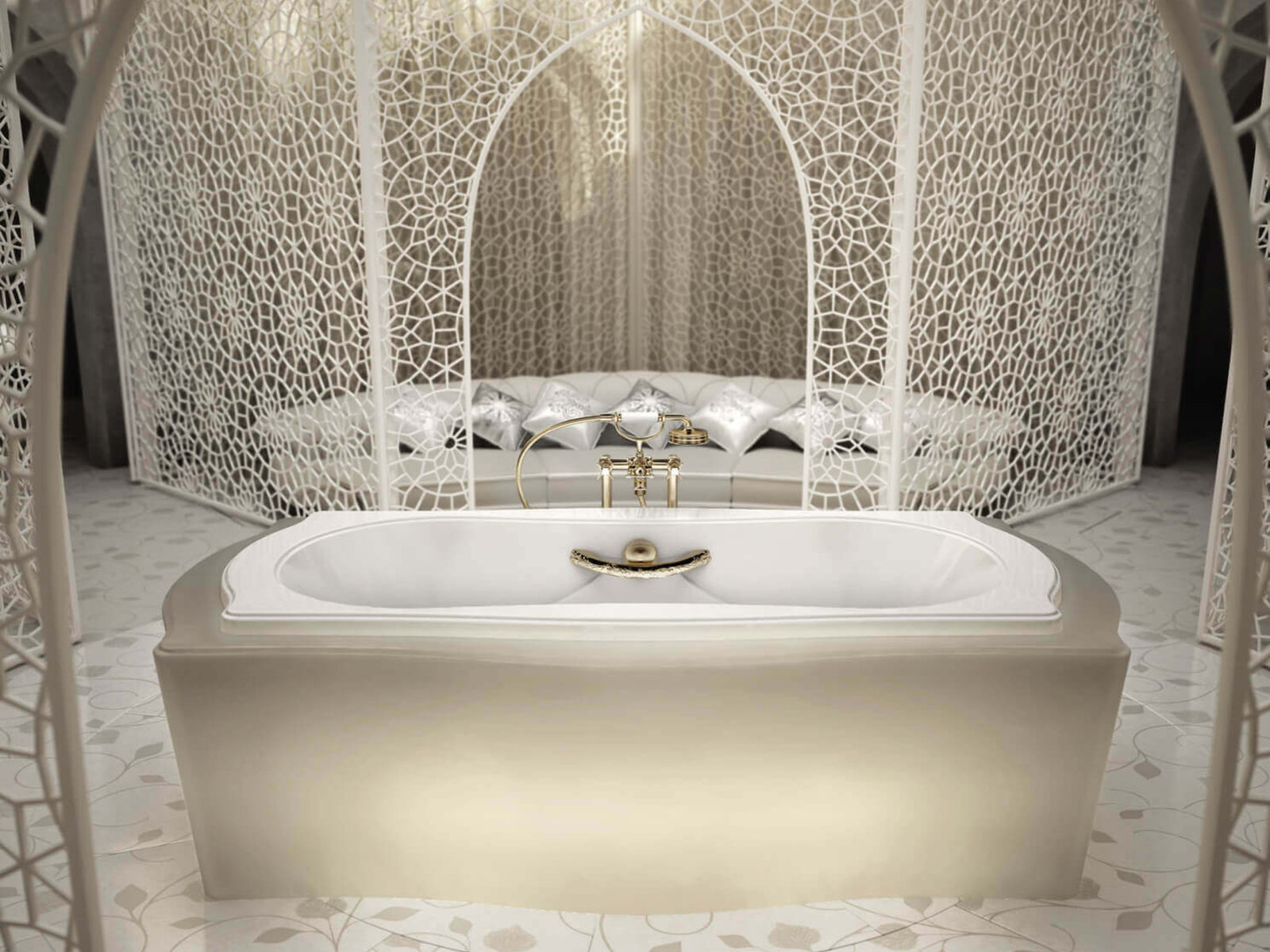

With shapes and lines that take us back to the Victorian era, this series transcends time, fitting right in with today’s styles
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Product sheet & template
Technical specs
Download documentCutting template
Download documentTechnical drawings
C10 Front view
Download documentC10 Side view
Download documentC10 Top view
Download documentC11 Front view
Download documentC11 Side view
Download documentC11 Top view
Download documentC12 Front view
Download documentC12 Side view
Download documentC12 Top view
Download documentC13 Front view
Download documentC13 Side view
Download documentC13 Top view
Download documentC14 Front view
Download documentC14 Side view
Download documentC14 Top view
Download documentOther files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentWarning BU Touch

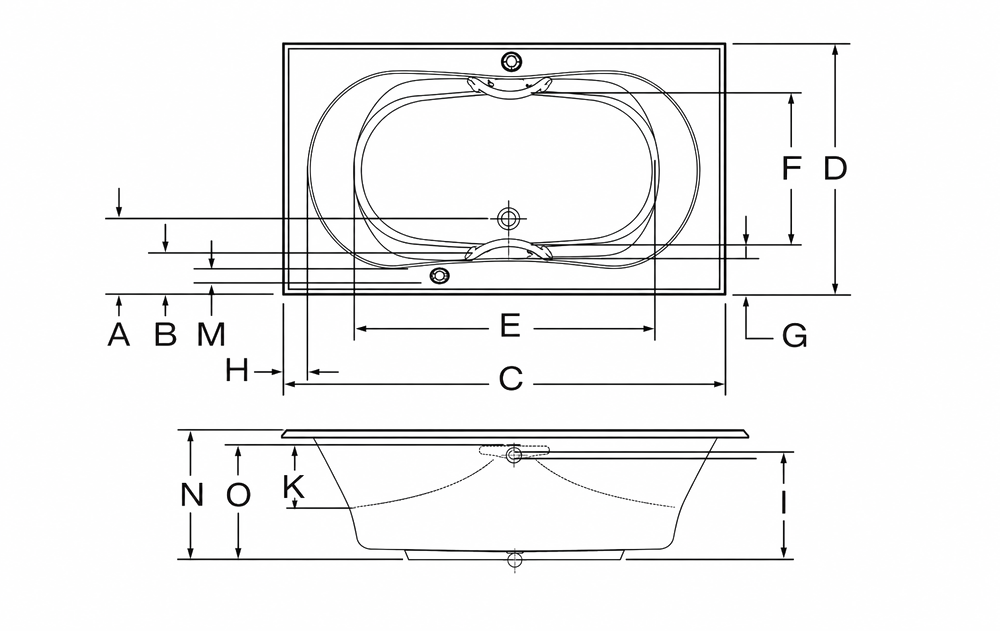

Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain | 12 5/8" |
| B | Outside edge to overflow | 6 5/8" |
| C | Total length | 71 1/2" |
| D | Total width | 41 1/2" |
| E | Bathing well length | 47 1/4" |
| F | Bathing well width | 25 3/8" |
| G | Deck width (widest point) | 6 1/4" |
| H | Deck width at backrest end | 5 1/8" |
| I | Height from bottom of drain to center of overflow | 16" |
| J | Maximum water level (Drain & overflow 16" x 35") | 14 5/16" |
| K | Slope of backrests | 30° |
| M | Deck width (Narrowest point) | 2 5/8" |
| N | Height from bottom of bath to top deck | 20 3/4" |
| O | Height from bottom of bath to bottom of deck | 18" |
