Drop-in
72" x 36" x 25"

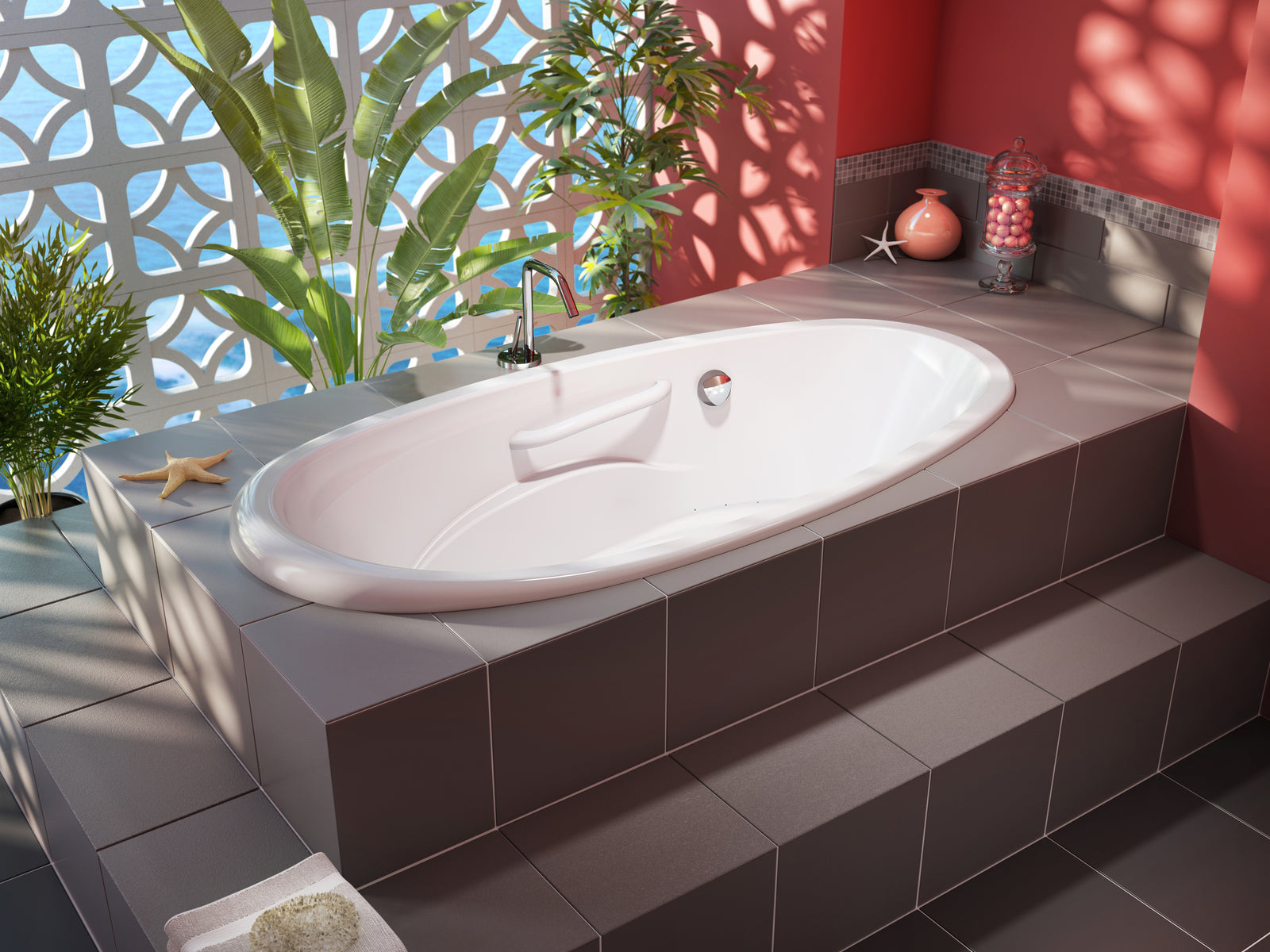

With its clean egg-shape silhouette and ergonomically sculpted interior, the Essencia combines visual elegance with therapeutic comfort. A supportive footrest and integrated grab bars provide stability and ease of access while enhancing the immersive experience of a restorative soak.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Product sheet & template
Technical specs
Download documentInstallation manual
Download documentCutting template
Download documentTechnical drawings
Drop-in Front view
Download documentDrop-in Side view
Download documentDrop-in Top view
Download documentOther files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

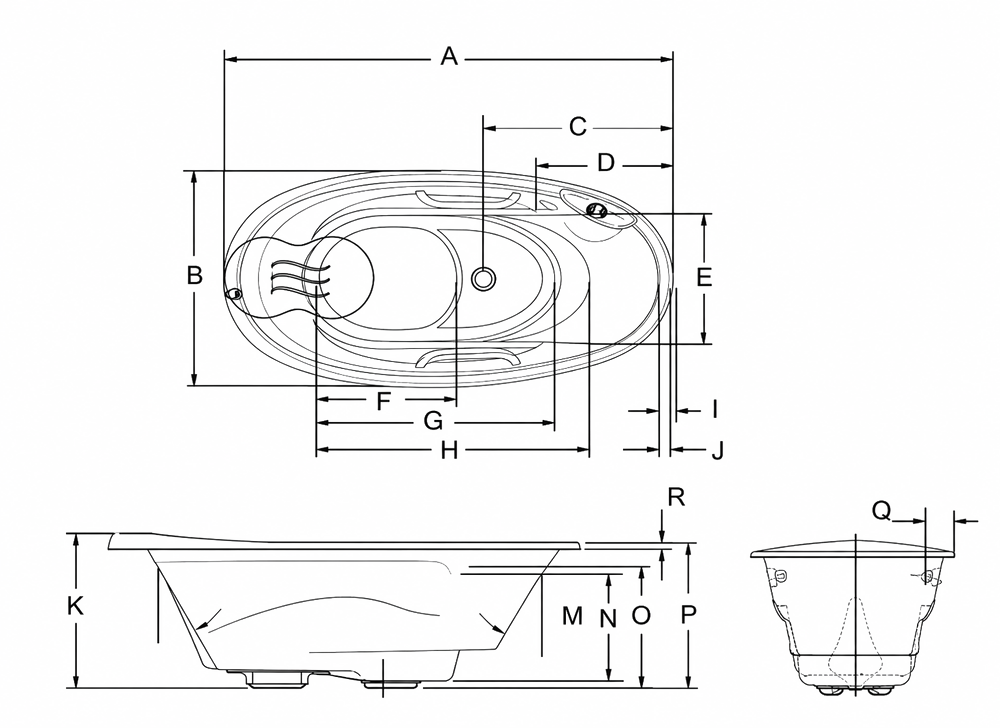

Download document| Letter | Description | Measure |
|---|---|---|
| A | Total length | 72" |
| B | Total width | 36" |
| C | Outside edge to center drain | 30 1/2" |
| D | Outside edge to overflow | 20 1/2" |
| E | Bathing well width | 21" |
| F | Raised seat length | 22 5/8" |
| G | Bottom bathing well length | 38" |
| H | Bathing well length | 45 1/4" |
| I | Deck width (top) | 2 5/8" |
| J | Deck width (raised deck) | 1 1/2" |
| K | Total height to headrest | 24 7/8" |
| L | Slope of backrest | 30° |
| M | Slope on drain side | 32° |
| N | Maximum water level (Drain & overflow 16" x 35") | 16 5/8" |
| O | Height from bottom of drain to center of overflow | 18 3/8" |
| P | Height from bottom of bath to top deck | 23 1/2" |
| Q | Minimum faucet dimension | 6 3/8" |
| R | Deck height at footrest | 1" |
