Freestanding
72" x 36" x 27"
With its clean egg-shape silhouette and ergonomically sculpted interior, the Essencia combines visual elegance with therapeutic comfort. A supportive footrest and integrated grab bars provide stability and ease of access while enhancing the immersive experience of a restorative soak.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentInstallation manual
Download documentCutting template
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentWarning BU Touch

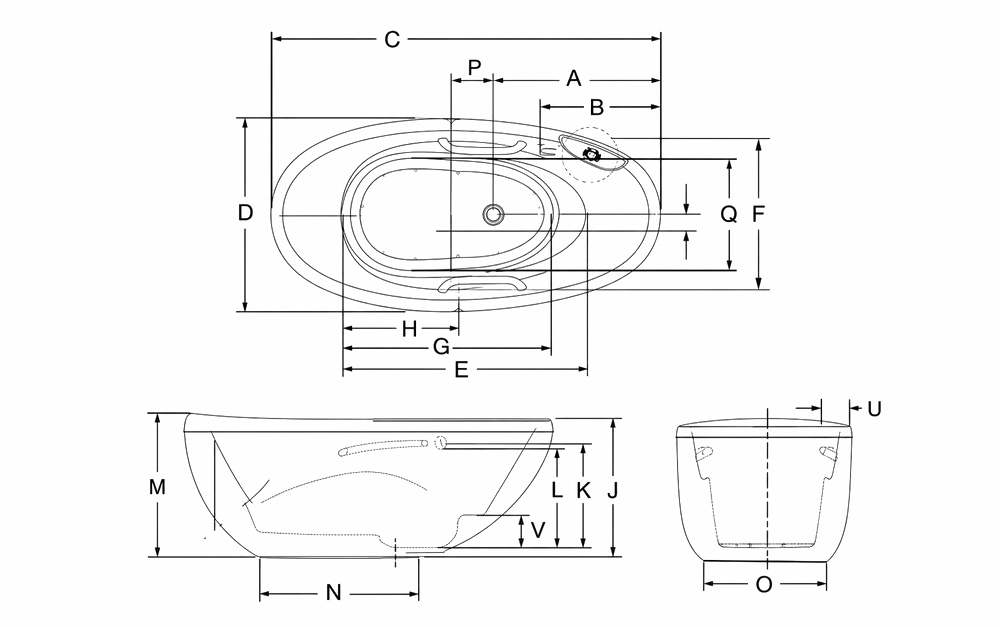

Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain | 30 1/2" |
| B | Outside edge to overflow | 20 1/2" |
| C | Total length | 72" |
| D | Total width | 36" |
| E | Bathing well length | 45 1/4" |
| F | Bathing well width | 21" |
| G | Bottom bathing well length | 38" |
| H | Raised seat length | 22 5/8" |
| I | Total height to headrest | 27 3/8" |
| J | Height from bottom of bath to top deck | 26" |
| K | Height from bottom of drain to center of overflow | 18 3/8" |
| L | Maximum water level (Drain & overflow 16" x 35") | 16 5/8" |
| M | Slope of backrest | 30° |
| N | Base length | 32 3/8" |
| O | Base width | 19" |
| P | Center drain to center air intake | 7 7/16" |
| Q | Center drain to center air intake | 2 1/2" |
| U | Minimum spout reach | 6 3/8" |
| V | Height of footrest | 5 1/2" |
