Drop-in
66" x 38" x 21"

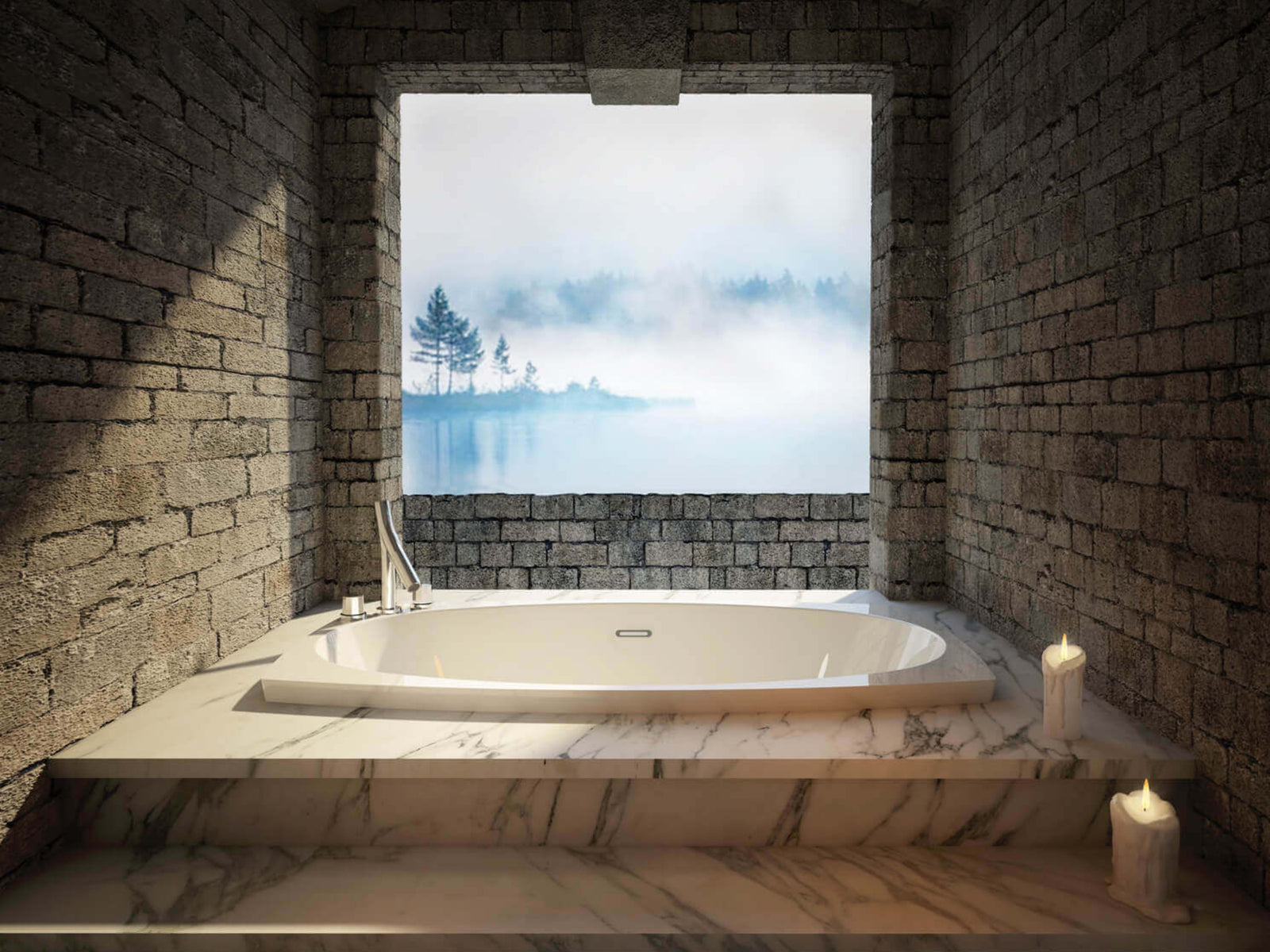

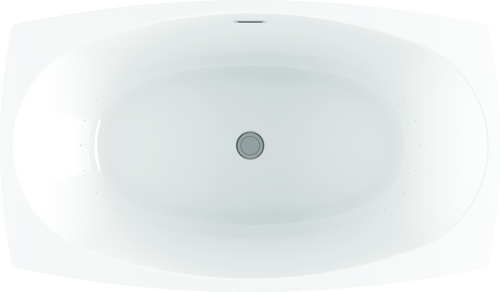

The Esthesia bath embodies neoclassical refinement with clean, purely geometric lines that settle gracefully into almost any architectural setting. A pure oval inner shell, drawn in gentle, progressive curves, comfortably accommodates two for a spacious, deeply relaxing soak.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Product sheet & template
Technical specs
Download documentInstallation manual
Download documentCutting template
Download documentTechnical drawings
Front thin deck view
Download documentFront view
Download documentRight thin deck view
Download documentRight view
Download documentTop thin deck view
Download documentTop view
Download documentOther files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

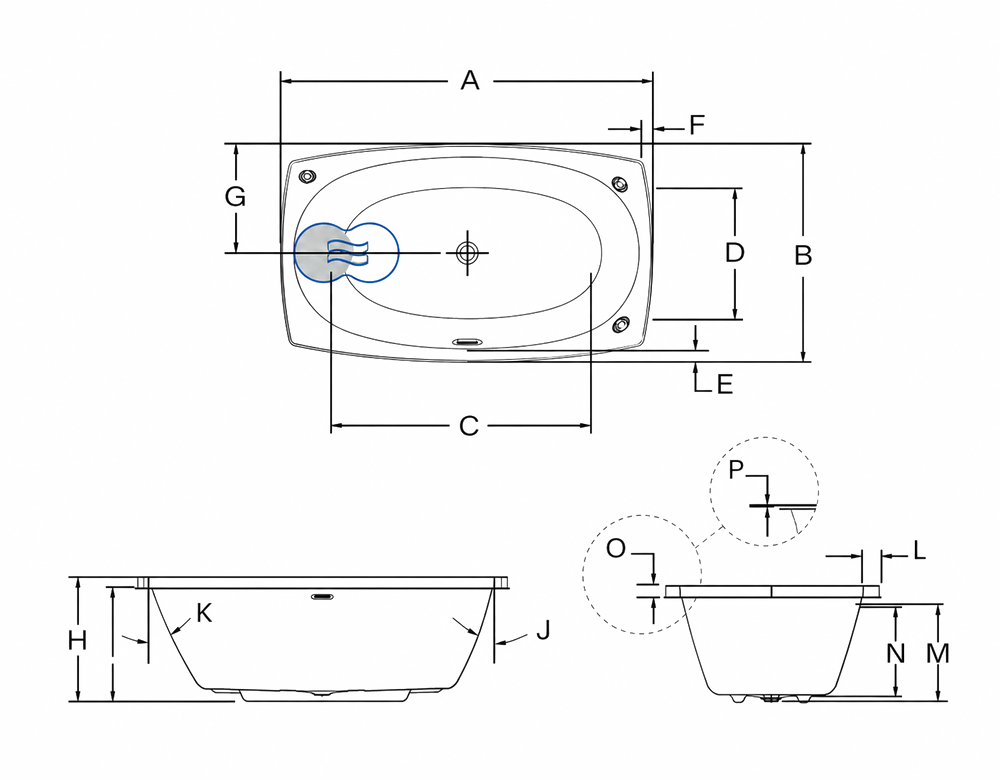

Download document| Letter | Description | Measure |
|---|---|---|
| A | Total length | 66" |
| B | Total width | 38" |
| C | Bathing well length | 47 3/8" |
| D | Bathing well width | 23" |
| E | Deck width (narrowest point) | 2 5/8" |
| F | Deck width at 2nd backrest | 2 5/8" |
| G | Deck to drain center | 19" |
| H | Total height | 21" |
| I | Height from bottom of bath to bottom of standard deck 2" | 19" |
| J | Slope of 2nd backrest | 21° |
| K | Slope of backrest | 26° |
| L | Deck to edge of overflow | 3 1/2" |
| M | Height from bottom of drain to center of overflow | 16 5/8" |
| N | Maximum water level | 15 7/8" |
| O | Height from bottom to top of deck | 2" |
| P | Height from bottom to top of slim deck | 1/2" |
