Drop-in
72" x 40" x 23"

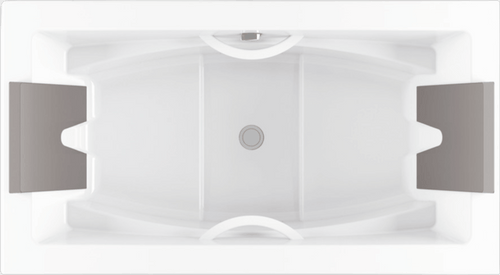

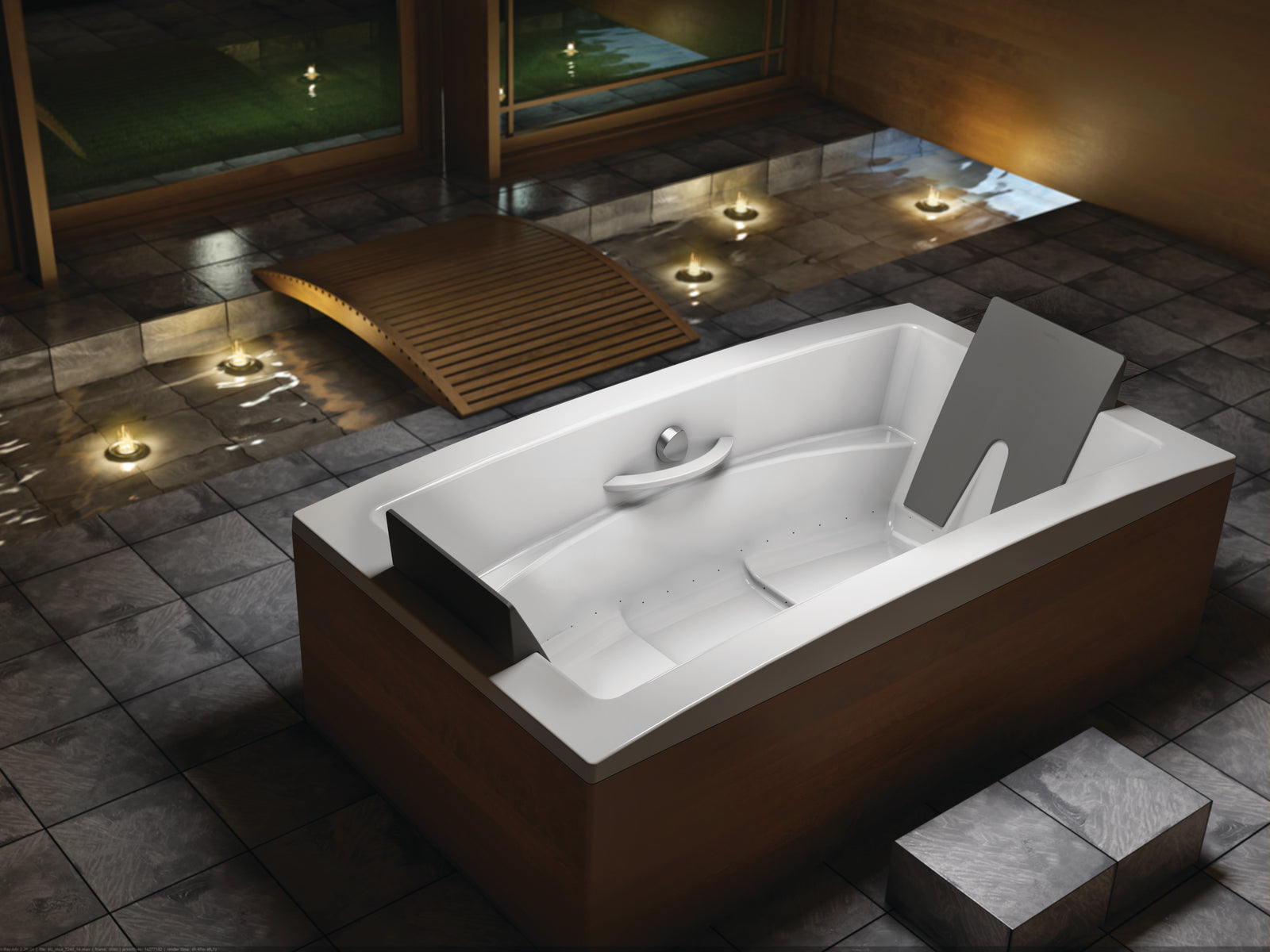

Designed for ultimate comfort, the Inua bath collection features two raised seats, an inverted V design, included comfort cushions, and ample space for two people.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Product sheet & template
Technical specs
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

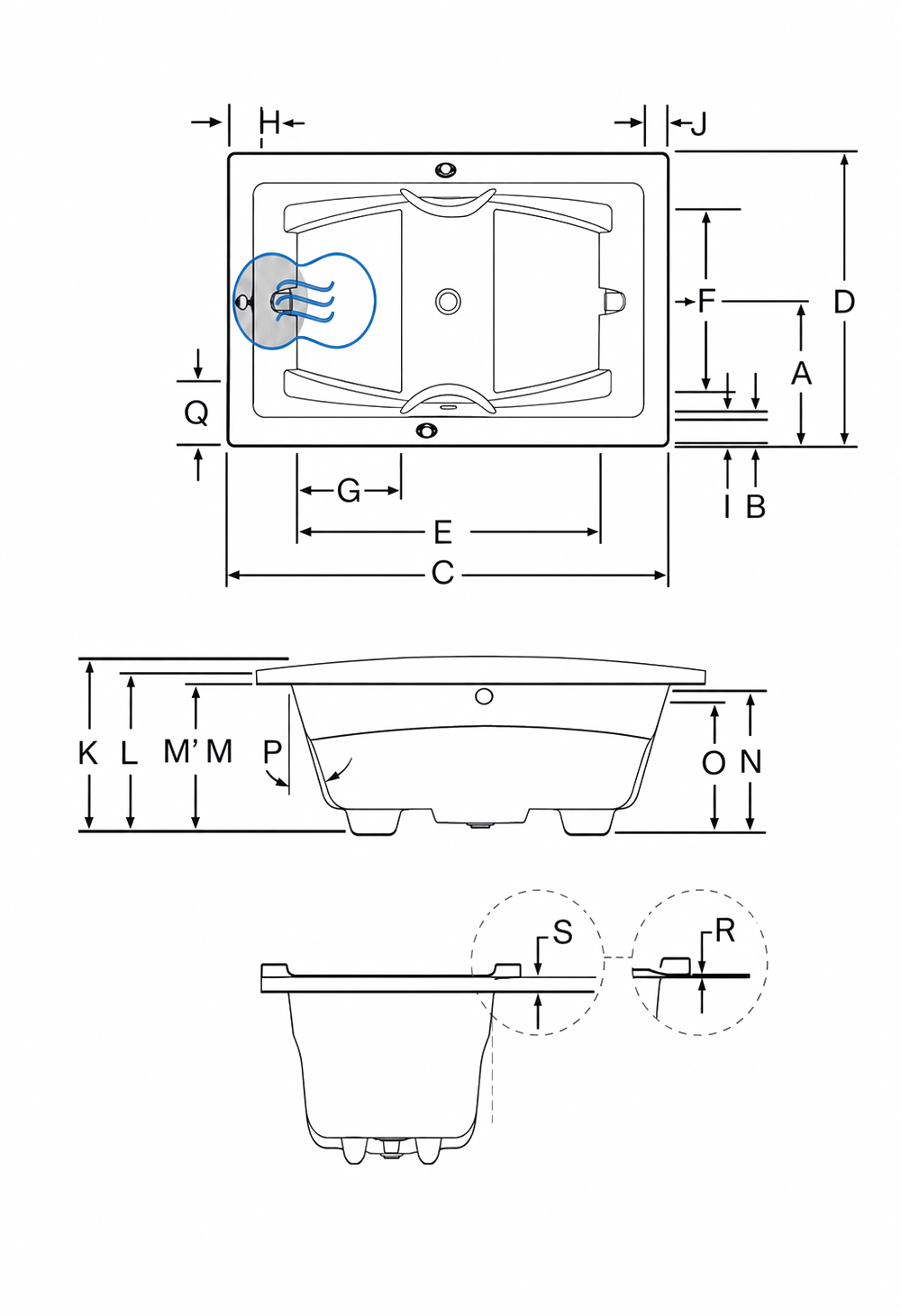

Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain | 20" |
| B | Outside edge to overflow | 4 1/2" |
| C | Total length | 72" |
| D | Total width | 40" |
| E | Bathing well length | 49 1/8" |
| F | Bathing well width at center zone | 25 1/8" |
| G | Raised seat length | 17 1/8" |
| H | Deck width at backrest end | 4 5/8" |
| I | Deck width | 4 5/8" |
| J | Deck width | 4 5/8" |
| K | Height from bottom of bath to top deck | 23" |
| L | Total height to headrest | 21" |
| M | Height from bottom of bath to bottom of standard deck | 19 1/2" |
| M' | Height from bottom of bath to bottom of slim deck | 20 1/2" |
| N | Height from bottom of drain to center of overflow | 17 1/8" |
| O | Maximum water level (Drain & overflow 16" x 35") | 15 3/8" |
| O | Maximum water level (Integrated drain & overflow) | 16 3/8" |
| O | Maximum water level with AromaFlow | 15 15/16" |
| P | Slope of backrests | 24° |
| Q | Minimum spout reach | 8 3/4" |
| R | Slim deck minimum height | 1/2" |
| S | Standard deck minimum height | 1 1/2" |
