Freestanding
74" x 36" x 23"
The Libra collection features symmetrical forms, soft lines, and gentle curves for a balanced freestanding design that blends modern elegance with spacious bathing comfort.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentInstallation manual
Download documentCutting template
Download documentOther files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

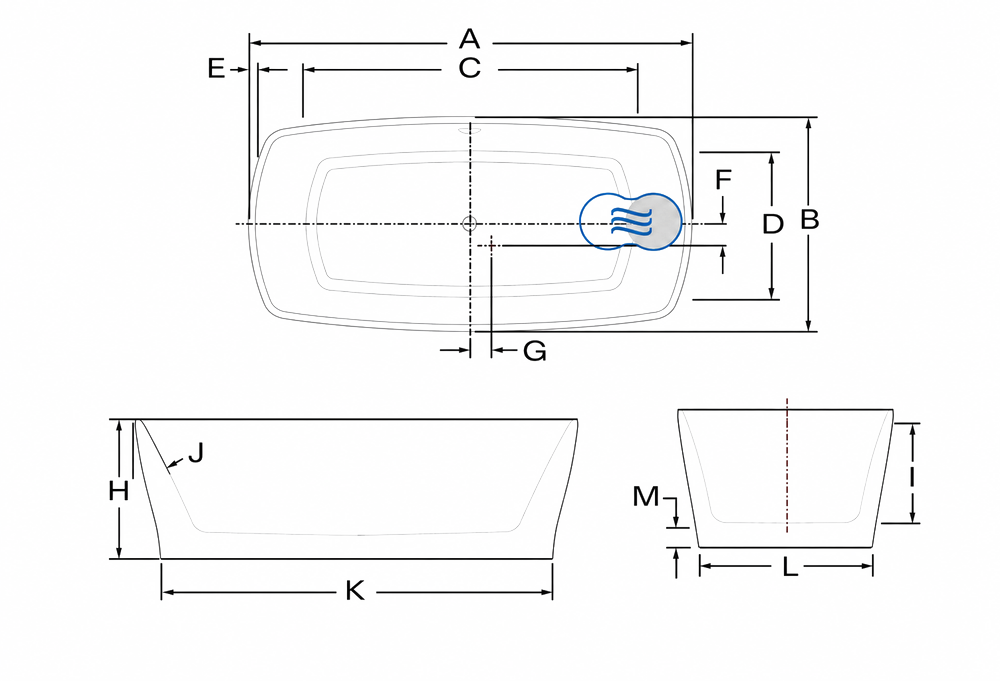

Download document| Letter | Description | Measure |
|---|---|---|
| A | Total length | 74" |
| B | Total width | 36" |
| C | Bathing well length | 55 5/8" |
| D | Bathing well width | 24 3/4" |
| E | Deck width | 1 3/8" |
| F | Center drain to air intake (side) | 3 1/2" |
| G | Center drain to air intake (front) | 3 1/2" |
| H | Total height | 23" |
| I | Maximum water level | 16 3/8" |
| J | Slope of backrests | 26° |
| K | Base length | 65 1/4" |
| L | Base width | 29 1/4" |
| M | Height from drain to floor | 3 1/4" |
