Alcove, Drop-in, Undermount
60" x 32" x 21"
The Meridian collection features clean, versatile lines and multiple configurations to suit a variety of bathroom layouts. Designed for everyday comfort and wellness, it offers timeless style and balanced bathing comfort.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentCutting template
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentWarning BU Touch

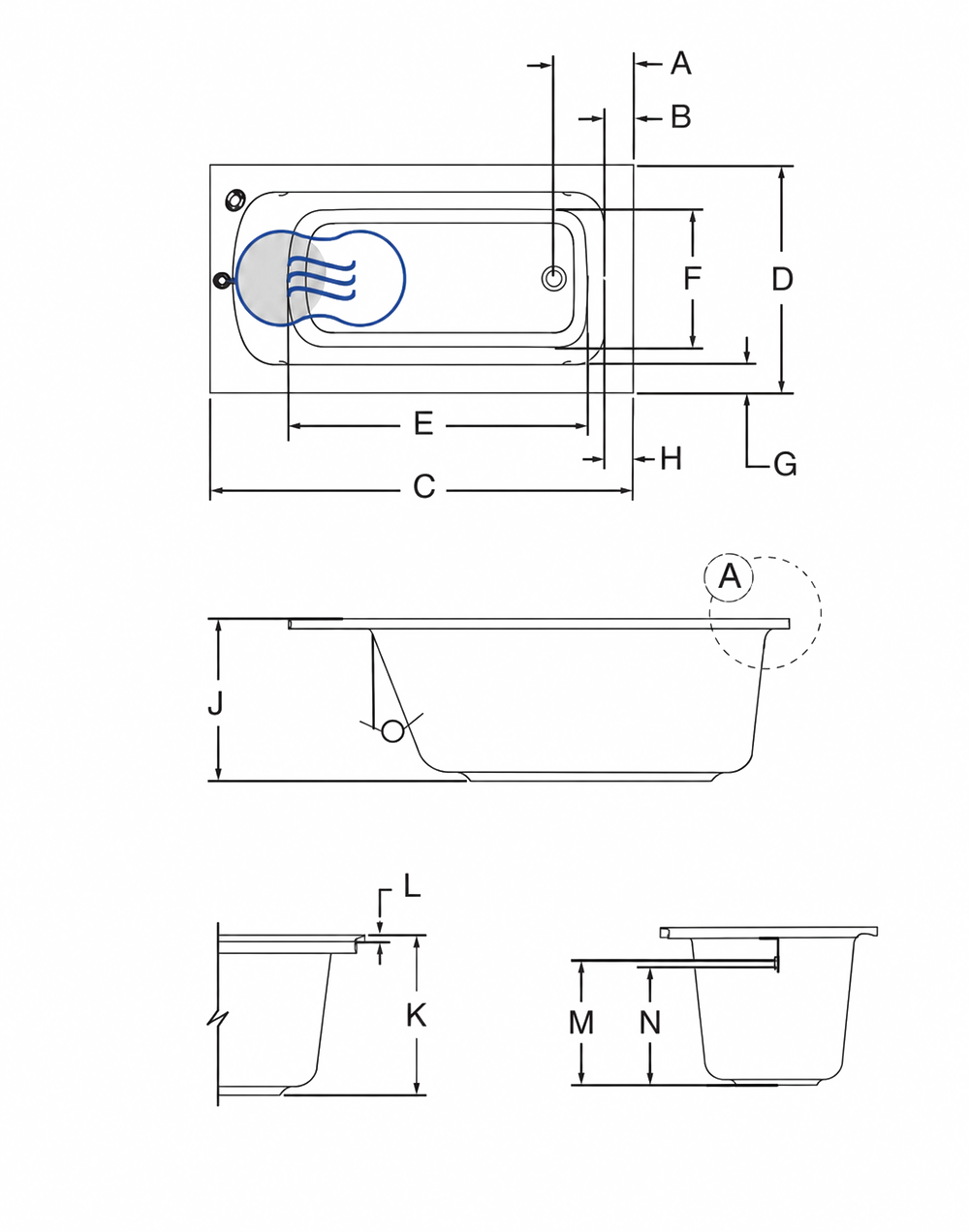

Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain | 11" |
| B | Outside edge to overflow | 4" |
| C | Total length | 60" |
| D | Total width | 32" |
| E | Bathing well length | 43 5/8" |
| F | Bathing well width | 19 5/8" |
| G | Deck width | 4 1/4" |
| H | Deck width at drain end | 3 1/2" |
| I | Height from bottom of bath to top deck | 20 1/2" |
| J | Height from bottom of bath to bottom of deck | 19" |
| K | Height from bottom of bath to top of tile flange | 21 1/2" |
| L | Tile flange height | 1" |
| M | Height from bottom of drain to center of overflow | 15 13/16" |
| N | Maximum water level (Drain & overflow 16" x 35") | 14 1/16" |
| O | Slope of backrest | 24° |
