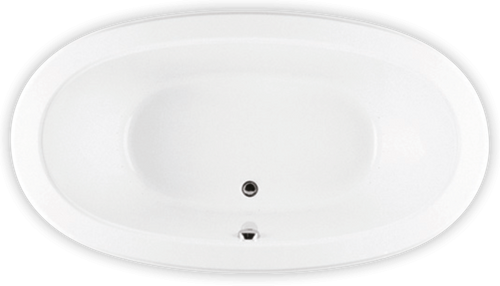

MERIDIAN ELLIPSE 7240

Drop-in, Undermount

72" x 40" x 21"

The Meridian collection features clean, versatile lines and multiple configurations to suit a variety of bathroom layouts. Designed for everyday comfort and wellness, it offers timeless style and balanced bathing comfort.

The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.

Product information

No. of bathers: 2
Imp. gallons: 49
Us gallons: 59
Material: Acrylic

Product configuration

Technical specifications

Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.

Faucet must be freestanding or wall-mounted.

Product sheet & template

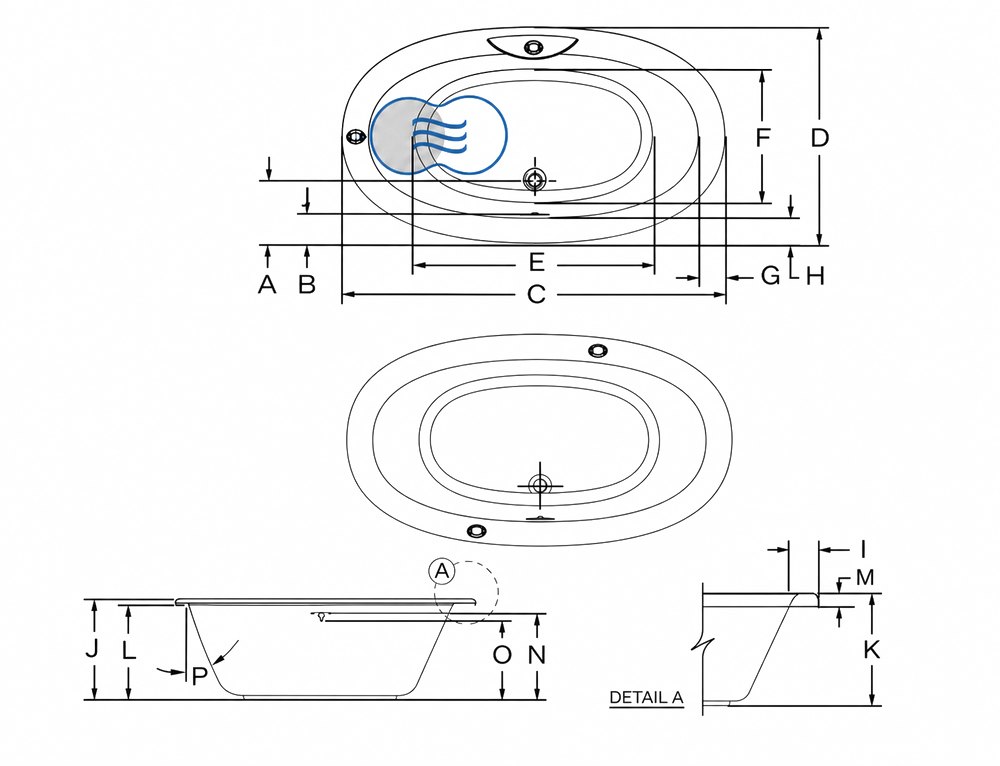

Technical specs

Letter	Description	Measure
A	Outside edge to center drain	11 3/4"
B	Outside edge to overflow	4 7/8"
C	Total length	72"
D	Total width	40"
E	Bathing well length	46 1/8"
F	Bathing well width	24 3/4"
G	Deck width at backrest end	4 3/4"
H	Deck width	4 5/8"
I	Rolled deck width	5 3/8"
J	Height from bottom of bath to top deck	21"
K	Height from bottom of bath to top deck	22"
L	Height from bottom of bath to bottom of deck	19 1/2"
M	Height from bottom of deck to top deck	2 1/2"
N	Height from bottom of drain to center of overflow	16 5/8"
O	Maximum water level (Drain & overflow 16" x 35")	14 7/8"
P	Slope of backrest	27°
