Freestanding
69" x 35" x 24"
With its monolithic silhouette and refined minimalist design, the Nokori Collection makes a bold architectural statement. Inside, a spacious bathing well and gently curved backrest cradle the body in comfort for a restorative soaking experience.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentInstallation manual
Download documentCutting template
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentPlumbing floor layout
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

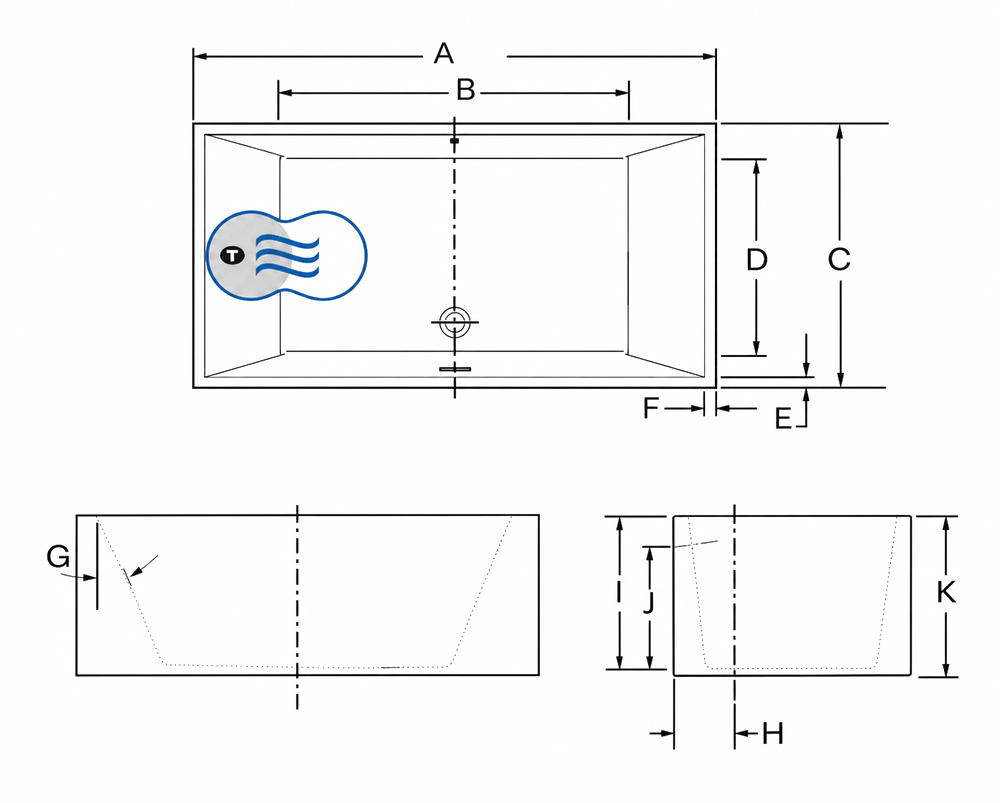

Download document| Letter | Description | Measure |
|---|---|---|
| A | Total length | 69" |
| B | Bathing well length | 45" |
| C | Total width | 35" |
| D | Bathing well width | 26 1/4" |
| E | Deck width | 2" |
| F | Deck width at backrest ends | 1 5/8" |
| G | Slope of backrests | 24° |
| H | Outside edge to center of drain | 8 3/4" |
| I | Height from bottom of drain to top of deck | 21" |
| J | Maximum water level | 16 3/4" |
| J | Maximum water level with AromaFlow | 16 1/4" |
| K | Total height | 24 1/2" |
