Freestanding
67" x 37" x 24"
With its monolithic silhouette and refined minimalist design, the Nokori Collection makes a bold architectural statement. Inside, a spacious bathing well and gently curved backrest cradle the body in comfort for a restorative soaking experience.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentInstallation manual
Download documentCutting template
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentPlumbing floor layout
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

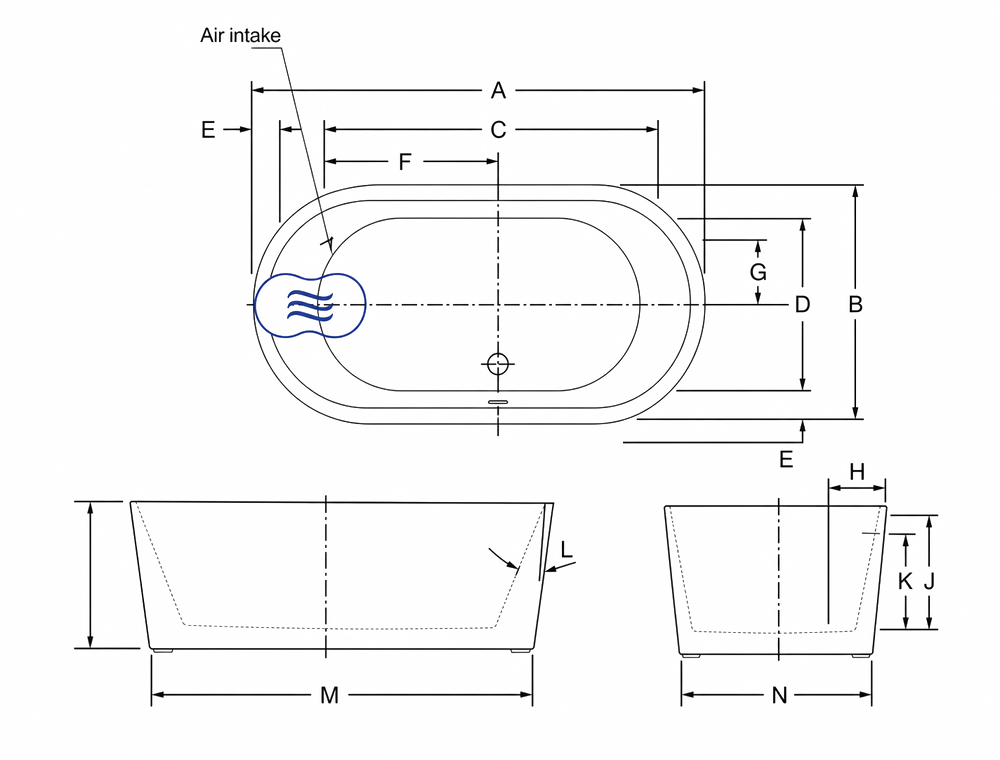

Download document| Letter | Description | Measure |
|---|---|---|
| A | Total length | 66 1/2" |
| B | Total width | 37" |
| C | Bathing well length | 45 3/4" |
| D | Bathing well width | 26 1/4" |
| E | Deck width | 2 7/8" |
| F | Air intake to center of drain (long axis) | 21 3/4" |
| G | Air intake to center of drain (trans axis) | 10 3/8" |
| H | Center of drain to deck side | 9 3/4" |
| I | Total height | 24" |
| J | Height from bottom of drain to top of deck | 20 1/2" |
| K | Maximum water level | 16 1/8" |
| K | Maximum water level with AromaFlow | 15 5/8" |
| L | Slope of backrests | 24° |
| M | Base length | 60 3/4" |
| N | Base width | 32" |
