Alcove, Drop-in, Undermount
60" x 30" x 21"
The Origami collection features clean, minimalist lines in a range of sizes. Select models offer varying deck heights for drop-in or undermount installation. It combines functional simplicity with refined, understated design for everyday soaking.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentCutting template
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

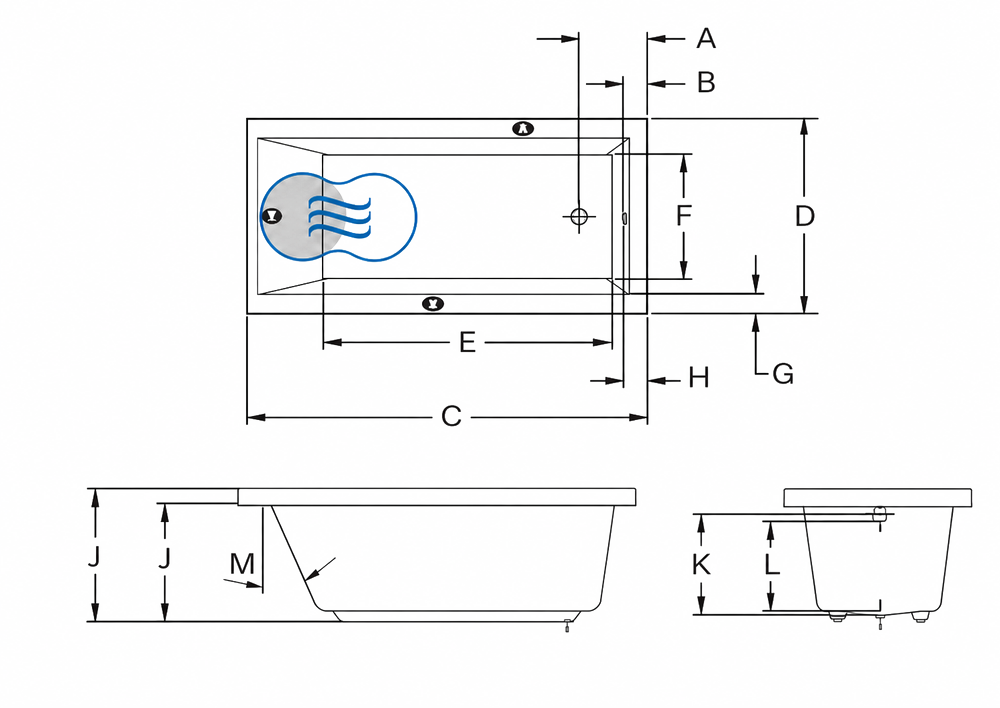

Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain | 11" |
| B | Outside edge to overflow | 3 5/8" |
| C | Total length (with 1/2" deck height) | 59 7/8" |
| C | Total length (with 2" deck height) | 60" |
| D | Total width (with 1/2" deck height) | 29 7/8" |
| D | Total width (with 2" deck height) | 30" |
| E | Bathing well length | 43 1/4" |
| F | Bathing well width | 19 5/8" |
| G | Deck width | 3 1/4" |
| H | Deck width | 3 1/4" |
| I | Height from bottom of bath to top deck | 21" |
| J | Height from bottom of bath to bottom of deck | 19" |
| K | Height from bottom of drain to center of overflow | 15 5/8" |
| L | Maximum water level (Drain & overflow 16" x 35") | 13 7/8" |
| L | Maximum water level (Integrated drain & overflow) | 14 7/8" |
| L | Maximum water level with AromaFlow | 14 3/8" |
| M | Slope of backrest | 24° |
