Drop-in, Undermount
70" x 40" x 22"
The Origami collection features clean, minimalist lines in a range of sizes. Select models offer varying deck heights for drop-in or undermount installation. It combines functional simplicity with refined, understated design for everyday soaking.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentCutting template
Download documentTechnical drawings
Technical drawing
Download documentOther files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

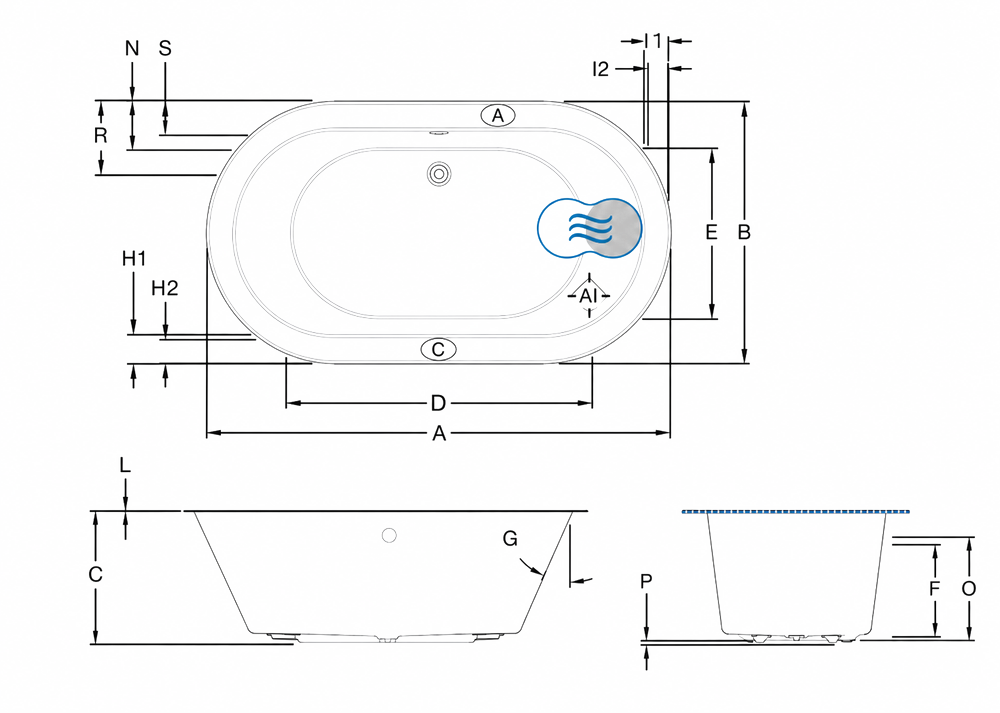

Download document| Letter | Description | Measure |
|---|---|---|
| A | Total length | 69 ½" |
| B | Total width | 39 ½" |
| C | Total height | 22" |
| D | Bathing well length | 45 ⅝" |
| E | Bathing well width | 26 ¼" |
| F | Water level (Integrated D/O) | 16 ⅛" |
| F | Water level (AromaFlow) | 15 ¾" |
| F | Water level (16''x 35'' D/O) | 15" |
| G | Slope of backrest | 24 ° |
| H1 | Deck width (sides) | 4 ¼" |
| H2 | Flat surface width (sides) | 3 ⅜" |
| I1 | Deck width (backrests) | 4 ⅜" |
| I2 | Flat surface width (backrests) | 3 ½" |
| L | Deck height | ½" |
| N | Minimum spout reach | 7 ⅜" |
| O | Bottom of drain to center of overflow | 17" |
| P | Distance from drain to floor | ¾" |
| R | Outside edge to drain (widthwise) | 11" |
| S | Outside edge to overflow | 4 ¾" |
