Freestanding
66" x 36" x 24"

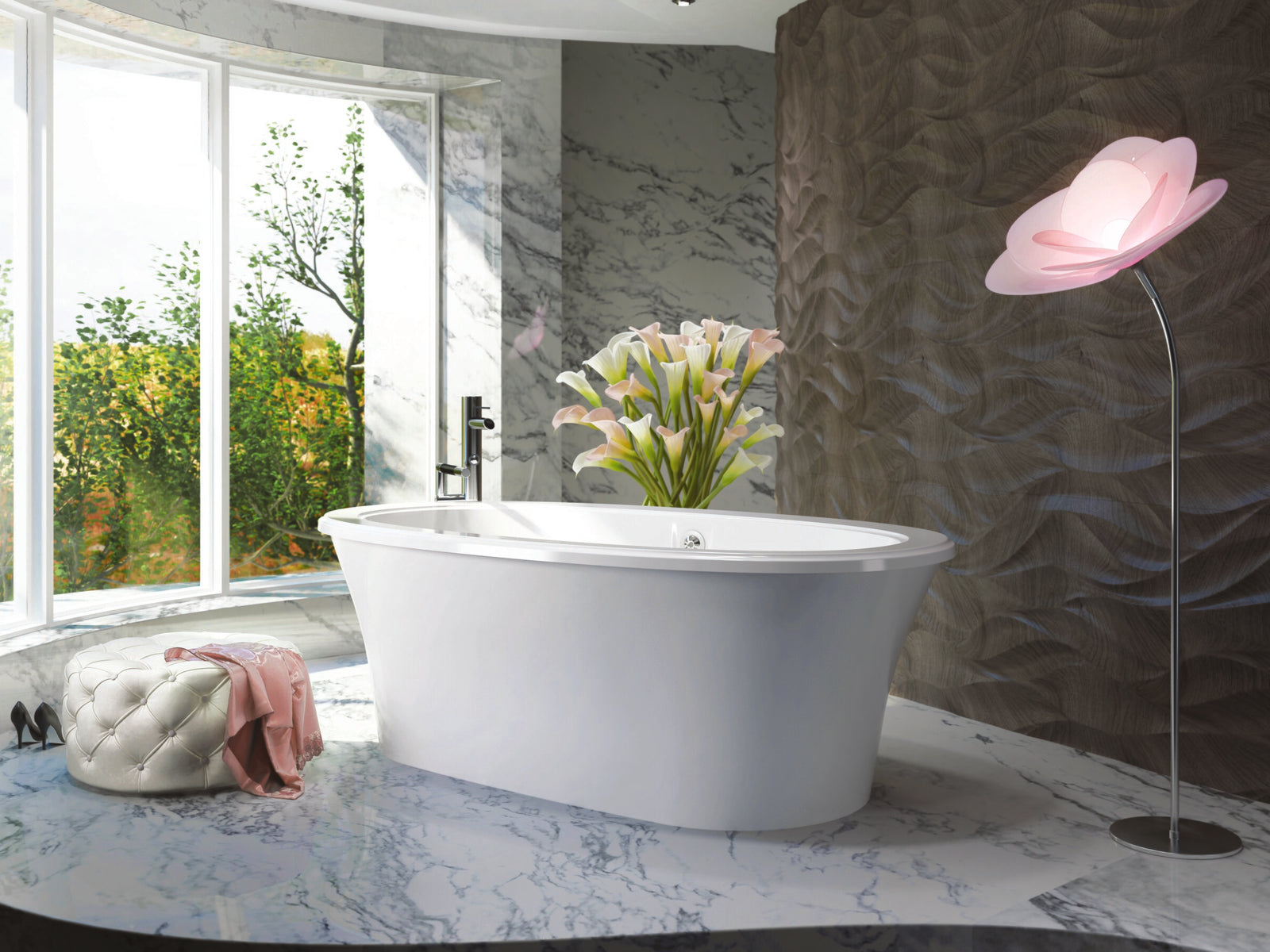

The Balneo Collection is a timeless favorite blending classic design and modern comfort in a freestanding bathing line. It offers rolled and flat deck options, generous soaking proportions for one or two bathers, and seamless integration into classic, transitional, and modern interiors.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Faucet must be freestanding or wall-mounted.
Product sheet & template
Technical specs
Download documentCutting template
Download documentTechnical drawings

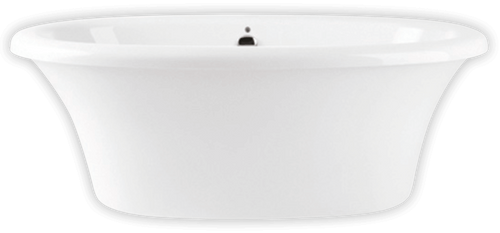

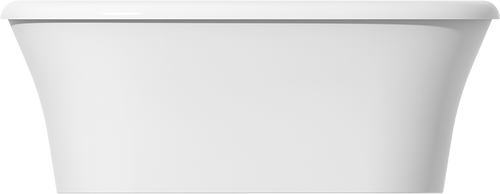

Rolled front view
Download documentRolled side view

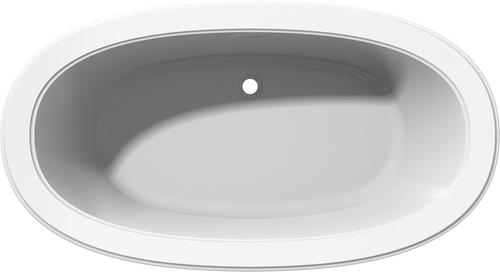

Download documentRolled top view
Download documentOther files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentWarning BU Touch

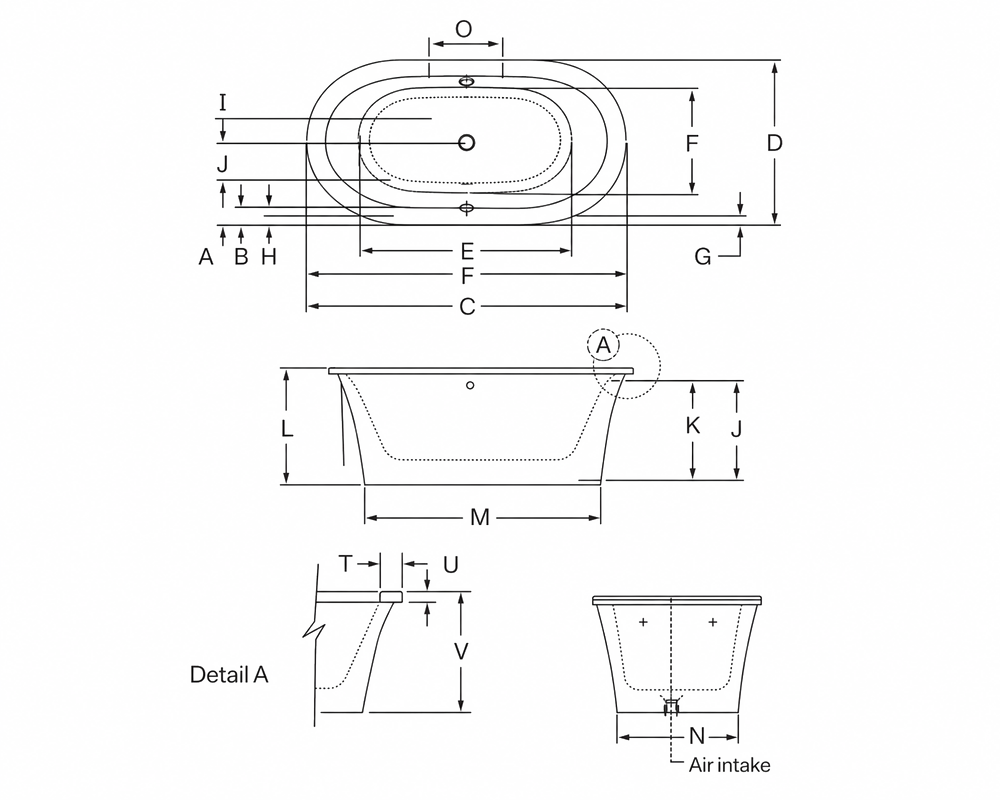

Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain | 11 1/2" |
| B | Outside edge to overflow | 4 5/8" |
| C | Total length | 66" |
| D | Total width | 36" |
| E | Bathing well length | 42 3/8" |
| F | Bathing well width | 22 1/4" |
| G | Deck width | 4 1/4" |
| H | Flat surface width | 3" |
| I | Height from bottom of bath to top deck | 24 1/2" |
| J | Height from bottom of drain to center of overflow | 16 5/8" |
| K | Maximum water level | 14 7/8" |
| L | Slope of backrests | 25° |
| M | Base length | 50 7/8" |
| N | Base width | 24 7/8" |
| O | Center drain to center air intake | 3 1/4" |
| T | Rolled deck width | 4 3/4" |
| U | Height from bottom of lip to top deck | 2 1/2" |
| V | Height from bottom of bath to top deck | 25 1/2" |
