Drop-in
54" x 54" x 20"
The bath’s size is perfect for achieving the benefits of Hydro-thermo Massage®.
With narrower sizes, the collection is perfect for rooms with space constraints.
The narrow sizes of this collection are suitable for spaces with certain architectural constraints.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Product sheet & template
Technical specs
Download documentCutting template
Download documentTechnical drawings
Other files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentWarning BU Touch

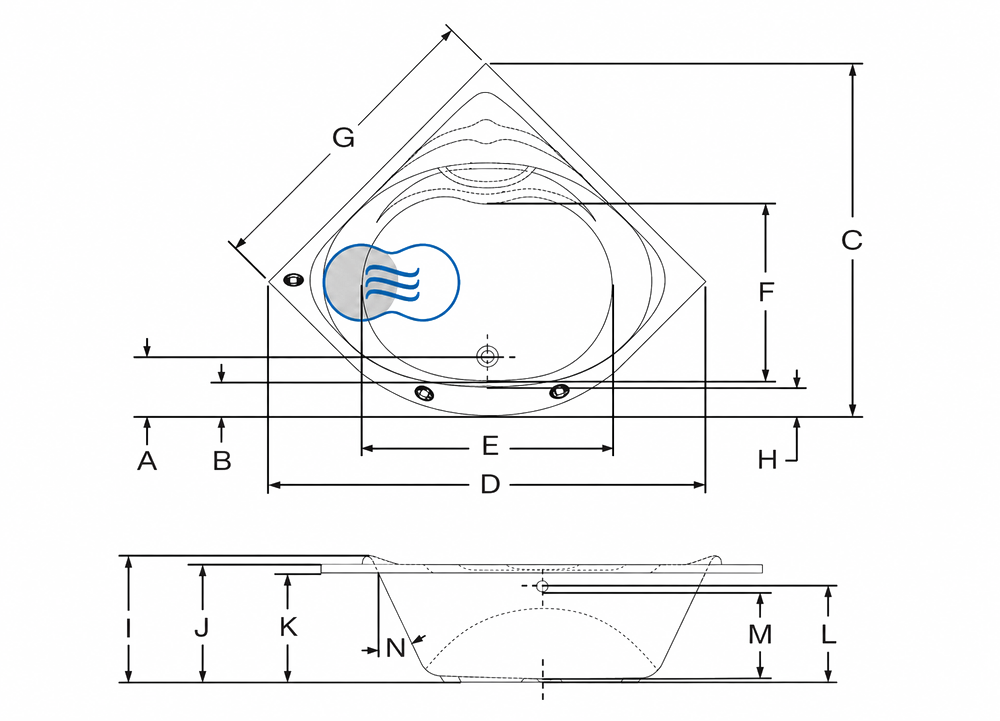

Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain | 10 1/2" |
| B | Outside edge to overflow | 5 1/2" |
| C | Total length | 58 7/8" |
| D | Total width | 75 7/8" |
| E | Bathing well length | 44" |
| F | Bathing well width | 28 7/8" |
| G | Sidewall length | 53 7/8" |
| H | Deck width (widest point) | 5 1/4" |
| I | Total height to raised headrest | 22 1/4" |
| J | Height from bottom of bath to top deck | 20 1/4" |
| K | Height from bottom of bath to bottom of deck | 18 3/4" |
| L | Height from bottom of drain to center of overflow | 15 3/4" |
| M | Maximum water level (Drain & overflow 16" x 35") | 14" |
| N | Slope of backrests | 21° |
