Alcove, Drop-in
60" x 30" x 19"
The Vibe collection features a clean silhouette that brings understated elegance to any bathroom. Compact in size, its softly contoured interior creates a comfortable bathing space. With balanced proportions and a minimalist design, it integrates effortlessly into a variety of bathroom styles as a soothing everyday retreat.
The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.
Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.
Product sheet & template
Technical specs
Download documentCutting template
Download documentOther files
Control user guide
Download documentOwner manual
Download documentQuickstart Bu Touch Instructions
Download documentUltravelour instruction manual
Download documentWarning BU Touch

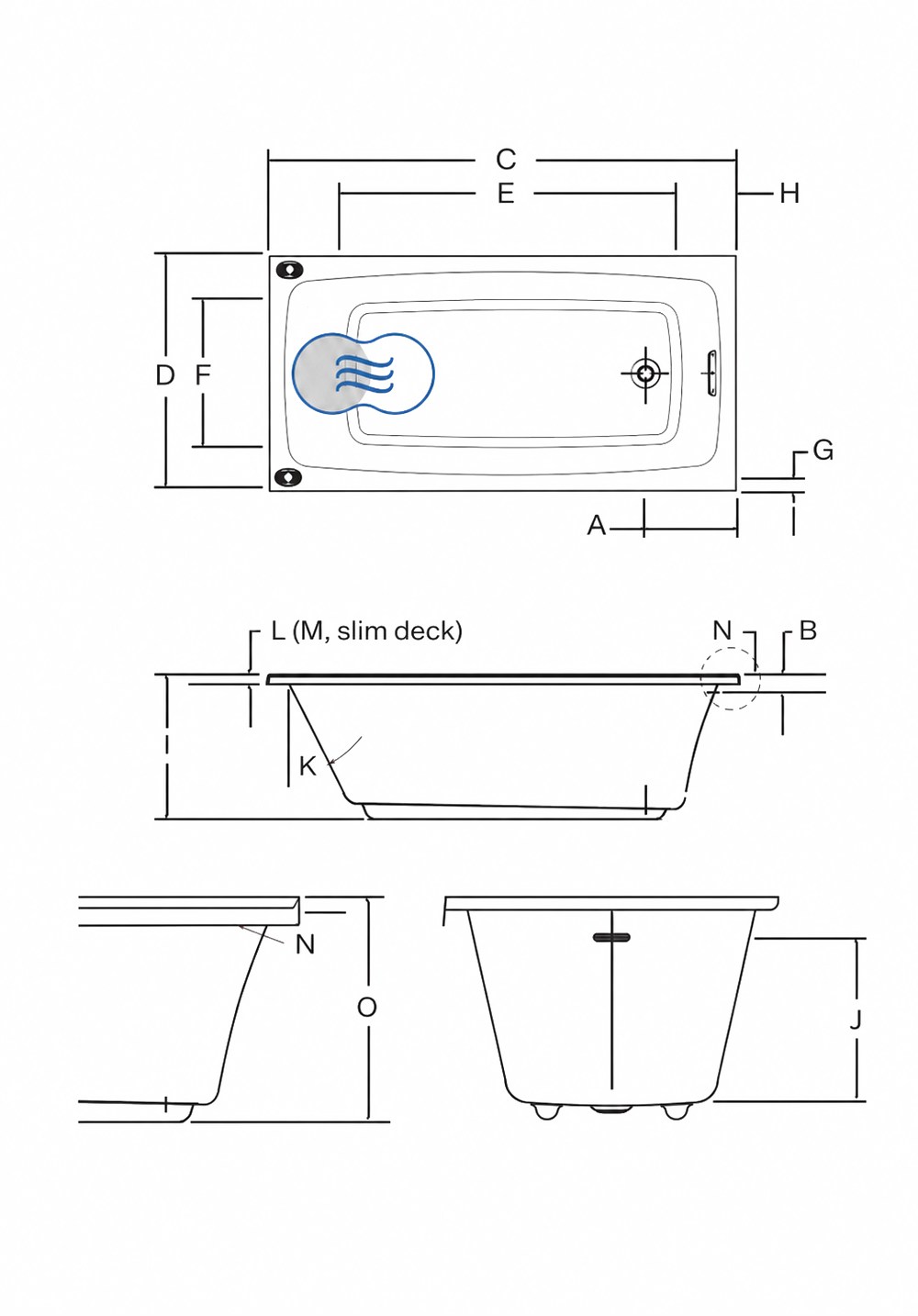

Download document| Letter | Description | Measure |
|---|---|---|
| A | Outside edge to center drain | 10 7/8" |
| B | Outside edge to center of overflow | 2 1/2" |
| C | Total length | 60" |
| D | Total width | 30" |
| E | Bathing well length | 44" |
| F | Bathing well width | 19 1/8" |
| G | Deck width | 1 7/8" |
| H | Deck width at drain end | 2" |
| I | Height from bottom of bath to top deck | 18 1/2" |
| J | Maximum water level | 14 5/16" |
| K | Slope of backrest | 27° |
| L | Height from bottom of deck to top std deck | 1 1/2" |
| M | Height from bottom of deck to top slim deck | 1/2" |
| N | Tile flange height | 1" |
| O | Height of bath from bottom of bath to top of tile flange | 19 1/2" |
