VIBE BACK TO WALL 5828

Back to wall

58" x 28" x 21"

The Vibe collection features a clean silhouette that brings understated elegance to any bathroom. Compact in size, its softly contoured interior creates a comfortable bathing space. With balanced proportions and a minimalist design, it integrates effortlessly into a variety of bathroom styles as a soothing everyday retreat.

The air jet version features BainUltra's industry-leading Thermomasseur® built-in system that delivers a restorative full-body massage through discreet air jets for enhanced relaxation during bathing.

Product information

No. of bathers: 1
Imp. gallons: 36
Us gallons: 44
Material: Acrylic

Product configuration

Technical specifications

Our products must be installed by certified professionals only and according to our Owner's Manual as well as federal, provincial/state and local building codes and regulations.

Product sheet & template

Technical specs

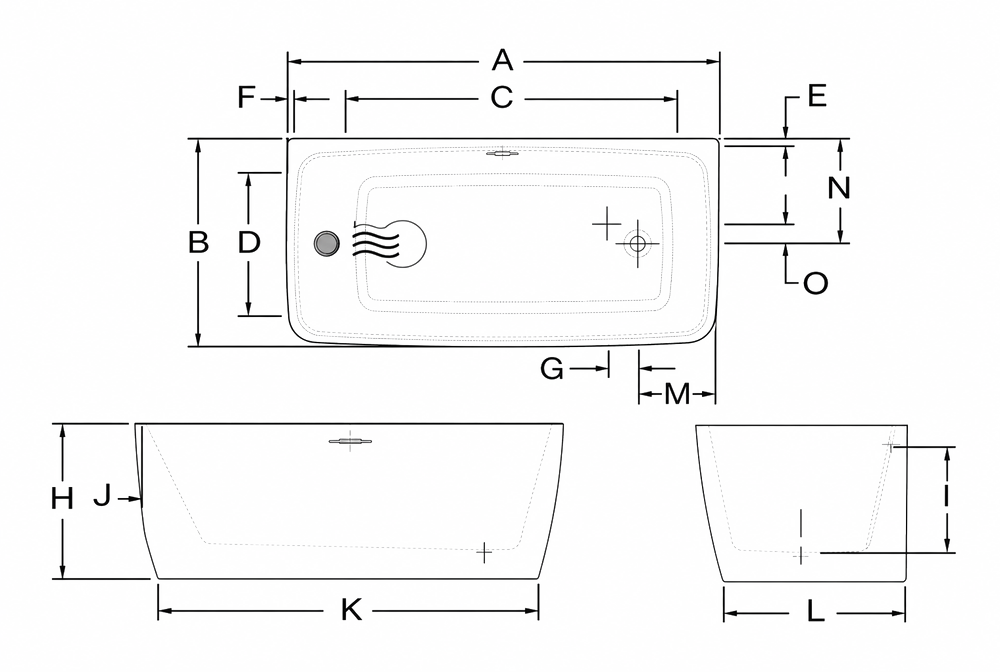

Letter	Description	Measure
A	Total length	58"
B	Total width	28 1/4"
C	Bathing well length	44"
D	Bathing well width	19 1/8"
E	Deck width to wall	1 1/8"
F	Deck width at headrest	1"
G	Center drain to air intake	4 1/4"
H	Total height	21"
I	Maximum water level	14 5/16"
J	Slope of backrest	27°
K	Base length	50 3/4"
L	Base width	24 1/2"
M	Outside edge to center bath drain	10 7/8"
N	Outside edge (wall) to center bath drain	14 1/4"
O	Center drain to center air intake	2 3/4"

VIBE BACK TO WALL 5828

Product information

Product configuration

Technical specifications

Technical drawing & Dimensions
